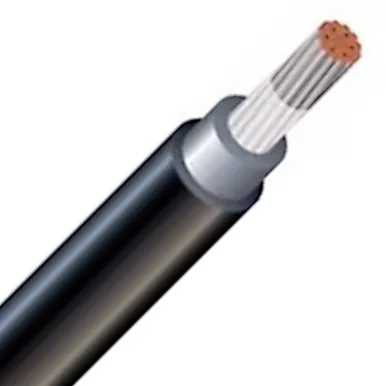

313 Awg DLO 2 KV Black

DLO Cable
Priced & Sold By the Foot, the Minimum Purchase for This Item is 15 Foot.

Portable or fixed power cable for use in drilling rigs, diesel-electric locomotives, railroad and transit car wiring, where reliability is a prime concern. Also suitable for electrically-driven earth-moving equipment, water-heater leads, power and control jumpers, case wiring and motor leads.

Awg: 313
Voltage: 2KV
Temperature Rating: 90 Degree C
Conductor: Extra flexible, tinned, annealed, stranded copper
Stranding: 777/24 Awg
Insulation: Ethylene propylene rubber (EPR) meeting requirements of ICEA S-68-516 (NEMA WC8)
Nominal O.D. : 1.06″

Amp Rating 1: 326 Amp
Ampacities based on 90 Degree C Conductor and 30 Degree C Ambient temperature based on Table 310.16 in the National Electrical Code for not more than three current-carrying conductors in raceway, cable or earth.

Amp Rating 2: 522 Amp
Ampacities based on single-conductor in free air, in accordance with National Electrical Code Table 310.17.

Note: This wire is drop shipped from a warehouse out of state. It is not available for pick up at the store. Pricing may vary from the retail store price.
