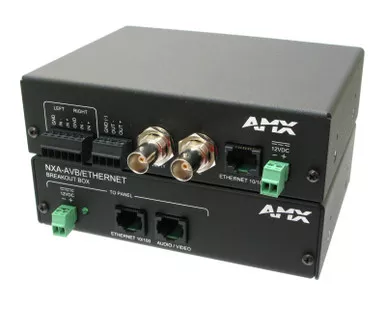

AMX NXA-AVB/Ethernet A/V Breakout Box FG2254-10

AMX NXA-AVB/Ethernet A/V Breakout Box FG2254-10

Condition:
* New, Old Stock. Never Put Into Service. In OEM Packaging. As Pictured.

Additional Notes:
* Facilitates the installation and distribution of video, data, and audio to Modero touch panels located up 200ft (60.96m) from the AVB box.
* Accepts either Composite or S-Video
* Provides audio distribution to non-video touch panels.
* Provides video/audio distribution to video-capable touch panels over Cat5 cable up to 200 foot.
* Front Connections:
     • 2-pin 3.5mm Phoenix connector for power to the touch panel.
     • RJ-45 connector for Ethernet signals to the touch panel
     • RJ-45 connector for differential audio and video signal to the touch panel.
* Rear Connections:
     • 6-pin 3.5mm Phoenix connector for in-bound (left/right channel) audio
     • 4-pin 3.5mm Phoenix connector for out-bound (from microphone) audio
     • BNC female for Composite or Chroma
     • BNC female for luminance
     • 2-pin 3.5mm Phoenix connector for in-bound power
