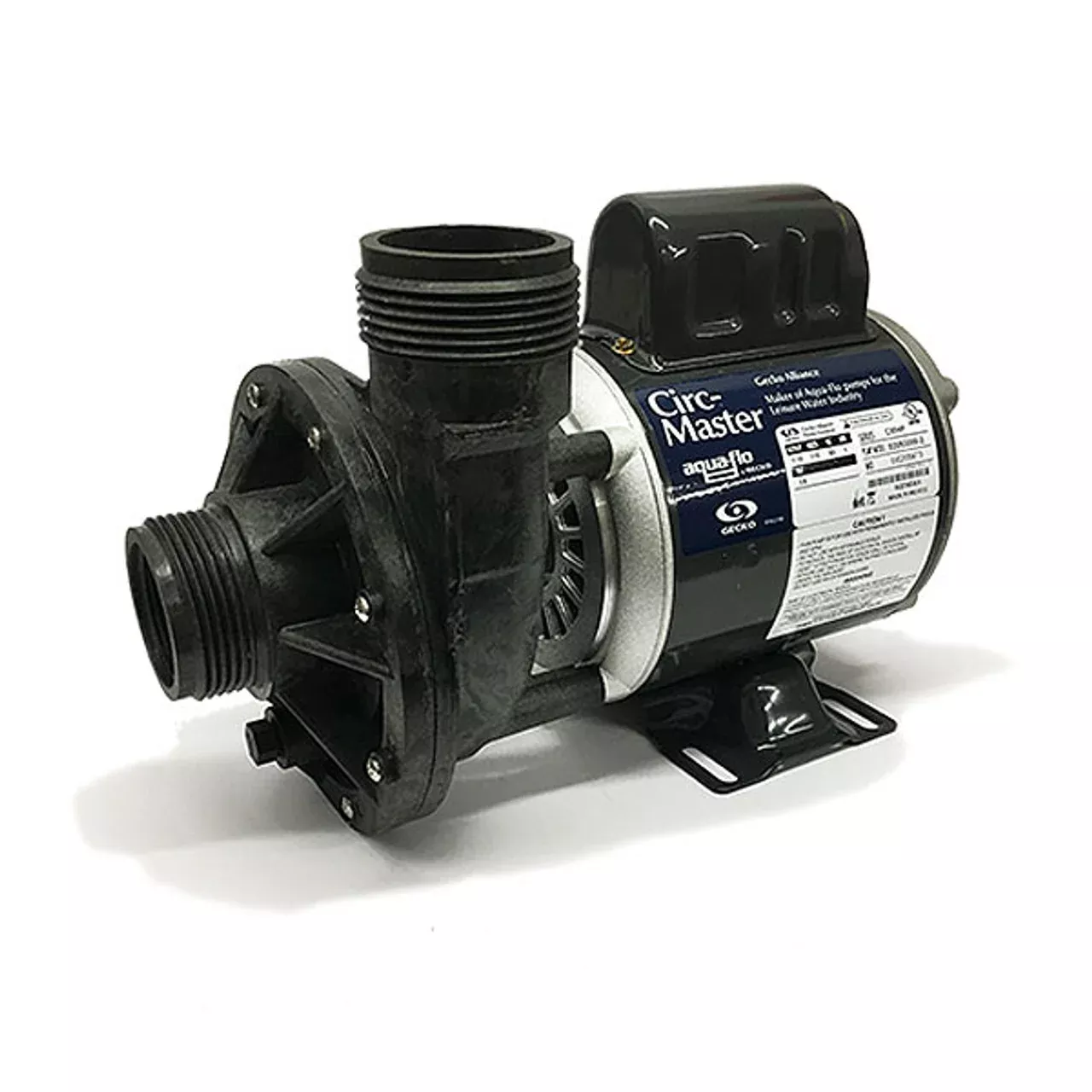

The Aqua-Flo Circ-Master 1/15 hp hot tub circulation pump is a reliable and quiet running pump. This 230 volt Circ-Master is used by many spa manufacturers who may have their own part numbers on it. See list below for all the different known part numbers that have been used on this Circ-Master by different hot tub manufacturers. This is also compatible replacement for the Waterway Iron Might pump.
Pump details:
- 230 volts, 60Hz
- 0.63 Amps
- 1/15 / 1/12 hp
- 48 frame electric motor
- Side discharge
- Genuine Aqua-Flo by Gecko pump part number 02093001-2010
- Intake and discharge size 1-1/2″ (measures 2-3/8″ outside to outside thread)
- Includes two new unions with o-rings
- Cord not included
Also compatible replacement for the following:
- K55MYGRD-8367
- 02408492-2
- 02408492-2
- 02403466-2
- 02093634-2
- 02403695-2
- 02093759-2
- 02403649-2
- 02410512-2
- 02407002-2
- 02093638
- 02403004-2
- 02093695-2 (Hush Pump)
- 104440 Maax / Coleman
- 02093007-2 (Hush Pump)
- 6000-907 (Jacuzzi/Sundance)
- 02093658-2
- 6500-907 (Jacuzzi/Sundance)
- CMHP550112
- 02408492-2510
- 02093002-2
- 02410002-2 (Baja Spa)
- 02093001-2024110512-2 (Theramax II)
- 02593001-2010
- 02093678-2
- 02093639-2
- 02093007-2000
- 02093006-2
- Pump Manual
- Brochure
Important Manufacturers Note.
Gecko labels these pump motors as 1/18, 1/15 or 1/12 OP.HP on the same motor that draws 0.63 amps, they DO NOT make 3 different 1/18, 1/12 of 1/15 OP.HP versions.
