Laing E10, 1″ Hose Barb 115V Circulation Pump

Laing E10 hot tub circulation pump running on 115 volts with 1″ barb hose connection.

Pump Details:

• Pipe Connections: 1″ Hose Barb Suction and Discharge
• 115 Volts, 62-69 Watts, 50/60 Hz, 3100 RPM
• Integrated thermoplastic pump bracket can be mounted at 4 different discharge angles.
• Maximum Capacity: 12 GPM
• Maximum Head: 18 feet
• Maximum Temperature: 140 degrees F.
• High density ceramic ball bearing and graphite impeller bearing cap are designed for high efficiency and long life.
• Clog resistant, open style impeller is dynamically balanced for smooth and ultra quiet operation.
• Patented design has no mechanical seal which is a potential leak path.
• Automatic overload protection on motor.
• Whisper quiet at less than 40 db.
• Pump can be mounted horizontally or vertically with motor end down.
• Comes with 3′ cord but no plug on the cord

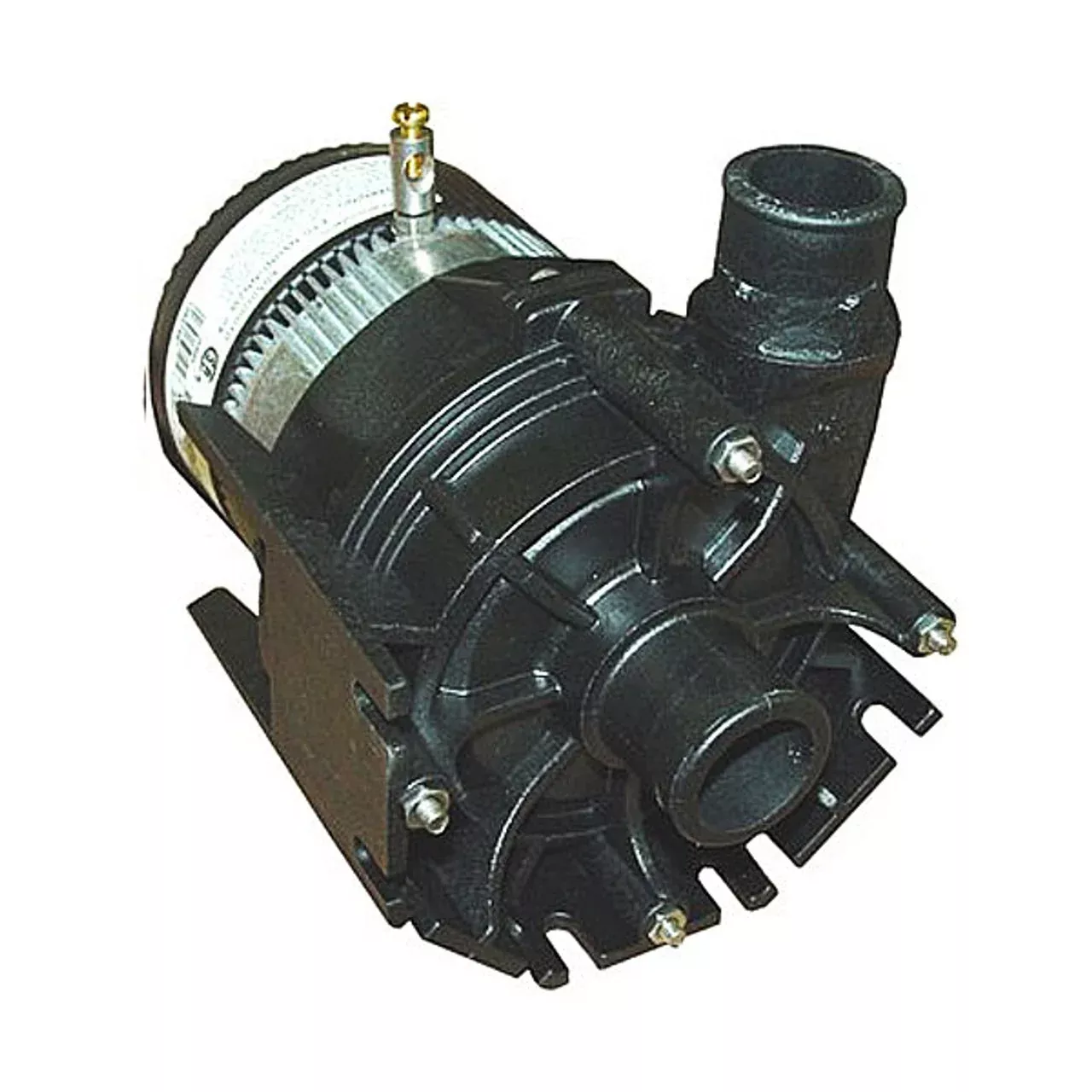

• Picture shows current generation style

Replaces: LBH07100143, E10-NSHNNN1W-19 1″ Barb 115V & 74069.

Replaces older 1″ Barbed 115V models: SM-1212-NHW-21-1″ 115V, SM-1212-NH-21-1″ 115V.
